Story
The tradition of offering fresh takes on classic Dennis Fano designs continues with this offset design, mixing elements of the original Mondata with a bold new aesthetic.

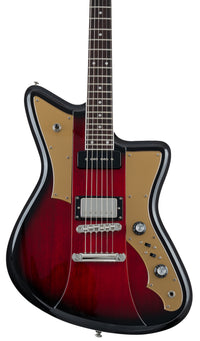

This new version of the Mondata offers lightweight construction coupled with sleek, yet aggressive stylings and modern playability. Features include all mahogany construction, rosewood fretboards with MOTO dot inlays, ‘Chunky C’ neck profile and our new proprietary Mondo pickups.
Features & Specs
- Body Wood - Double Bound Chambered Mahogany w/Raised Center-Block
- Neck Wood - Set Mahogany
- Fretboard Wood - Bound Rosewood with rolled edges
- Inlays - Pearloid/MOTO Dot
- Side Dots - Black
- Scale - 25”
- Nut Width - 1.687”
- Neck Width @ 12th Fret - 2.080”
- Neck Carve Shape - Chunky C+
- Neck Depth @ 1st Fret - .850”
- Neck Depth @ 12th Fret - .990”
- Fretboard Radius - 12”
- Frets - 24 Medium Jumbo
- Pickups - Neck - Rivolta Mondo P90 (7.5k) Bridge - Rivolta Mondobucker (12.5k)
- Wiring - Vol, Tone, 3-Way Toggle, In/Out Phase (Right Switch), Coil Split (Left Switch)
- Hardware - Nickel
- Bridge - Tunematic (10mm String Spacing)
- Tailpiece - Stoptail
- Tuners - Wilkinson Vintage style with Nickel buttons
- Knobs - Black reflector with Silver cap
- Nut Material - Bone
- Pickguard/Truss cover - Plexi
- Strings - 10-46
- Body Finish - Gloss
- Headstock Finish - Gloss
- Neck Finish - Gloss
- Overall Length - 39 1/2”
- Body Length - 20”
- Body Width @ Lower Bout - 14”
- Body Width @ Upper Bout - 12”
- Body Depth - 1 29/32”
- Overall Depth - 2 5/8”
- Average Weight: 7.5 lbs(More Info on Weight)
Case Fit
- Optional Cases:
- Rivolta Custom Hard Case
- Rivolta Premium Soft Case

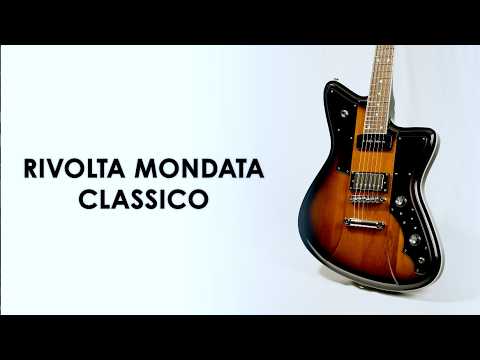

Introducing Mondata Classico
Mondata Switching System
On the Mondata, the main three-way toggle switch controls the front and back pickups, ignoring the middle pickup – identical to the three-way switching pattern common to most two-pickup guitars.
The second toggle controls the middle pickup exclusively. It can disable the middle pickup, enable the middle pickup (adding it to the other toggle’s selection), or override the other toggle, activating the middle pickup on its own.
This switching pattern allows for the selection of any combination of the model’s three pickups.
Mondo Pickups
With bell-like clarity, aggressive mids and a warm low-end, the proprietary Mondo P90 is an excellent choice for all genres.
The Mondobucker dials in classic humbuckers tones with a modern twist; perfect for overdriven rock tones and warm, balanced clean tones.
Optional Vibrato
The Mondata Classico is compatible with the Les Trem Tremolo. If you order one along with the guitar, we'll install it prior to shipping at no extra cost!
